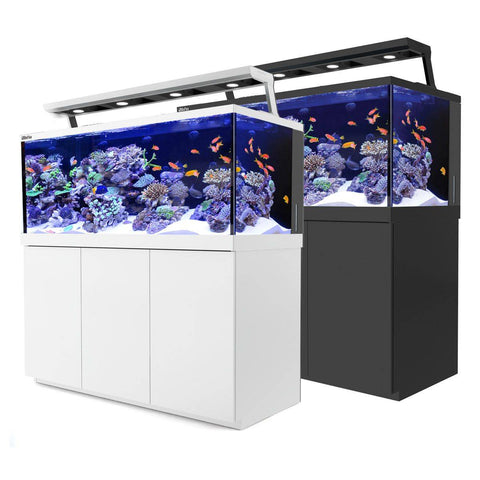

Red Sea Max S-650 LED Complete Reef System (170 Gal)

  • Sale
  • Regular price $ 6,599.00



Owning a thriving piece of coral reef has never been easier than with Red Sea’s new MAX S-Series range of aquariums.



Choosing the Red Sea MAX S-LED all in one aquarium series will make reef keeping easier than ever before.



The Red Sea MAX S-Series systems have been carefully designed to support even the most delicate stony (SPS) corals; the MAX S-Series seamlessly integrates all of the necessary systems and components like super-efficient LED lighting along with a contemporary style that will be a showpiece in any room of the home.



The Red Sea MAX S-Series is an innovative plug & play, complete, full size coral reef aquarium system. It is designed to allow you to focus on the beauty and diversity of your piece of coral reef, rather than worrying about component selection, suitability, and compatibility. MAX S-Series aquariums come fully equipped with everything you need including features such as ultra clear glass, REEF SPEC® lighting and filtration, customizable fascia and a one-plug control panel.



MAX S-Series Customized systems

Make your MAX S-Series unique choosing the color that fits your rooms needs. The stand and trim are painted to match identically, and all external surfaces use weather resistant polyurethane paints (similar to those utilized in the car industry) giving an elegant and durable finish.



Max-S tanks now include Red Sea ReefLED 90 Lights

Over the past few years, Red Sea has a lot of time dedicated to testing and researching LED lighting, and the culmination of those efforts led them to the ReefLED 90. Designed for optimal growth while producing great coloration with a pleasant shimmer effect. Red Sea didn't just stop with great function and form, they integrated the control of the light into the ReefBeat smart aquarium app. The ReefLED 90's built-in WiFi lets you directly connect the light to your smart device to set the daily schedule, color, intensity, and other features. Every Max-S Aquarium Kit includes the ReefLED lights along with the appropriate amount of mounting arms.





MAX S-Series Total Reef Filtration

The complete reef filtration system starts with the full-length surface skimmer that feeds the water to the in-cabinet sump via a flow-regulated, silent flow downpipe. The filtered water is returned to the aquarium by a main system pump that also supplies water to all of the filtration systems such as the protein skimmer, an optional chiller, and/or reactors.

The connection between the aquarium and sump is via standard union connectors, so no plumbing is required.

The MAX S-System is supplied with the main system pump, Reefer Skimmer 900, mechanical and carbon filtration media and all piping including preparation to connect a chiller and auxiliary reactors.



MAX S-Series Integrated Power Center

The MAX S-Series filtration system follows the one-plug MAX concept and features a power control center with easy access to 10 individually switched power sockets for all pumps, and other accessories, safety protected with integrated circuit breakers.



MAX® S-Series Specification Table

      MAX® S Model
Specification Description MAX® S 400 MAX® S 500 MAX®
S 650
System water volume Combined aquarium and sump 400 L
(110 gal)
500 L
(135 gal)
650 L
(175 gal)
Aquarium volume Display tank with rear circulation pump chamber 350 L
(97 gal)
440 L
(119 gal)
560 L
(150 gal)
Filtration sump volume Glass sump with preparation for auxiliary reactors or refugium 50 L
(13 gal)
60 L
(16 gal)
90 L
(25 gal)
Aquarium glass thickness Ultra clear front and side panels 12 mm
(1/2”)
12 mm
(1/2”)
15 mm
( 5/8”)
Surface skimmer Built in surface skimmer on full width of aquarium
Lighting system Red Sea ReefLED 90 (90W)* 2 unit 3 unit 4 unit
Lighting – standard configuration Full spectrum with nominal total output 180W 270W 360W
Lighting control WiFi based system compatible with all iOS, Android, and WiFi enabled Mac or PC.
Total circulation l/h (gph) Sump return + hidden individual 2,150 l/h (570 gph) circulation pumps 7800
(2000)
9500
(2500)
13600
(3600)
Main system pump l/h (gph) Sump return + feed to skimmer / chiller / reactors 7000
(1850)
7000
(1850)
7000
(1850)
Protein skimmer Reefer Skimmer 600
Protein skimmer Reefer Skimmer 900
Integrated power center 10 individually switched sockets for pumps and accessories
Integrated water top up system Easy-access storage tank with in-sump float valve 22 L
(6 gal)
29 L
(7.5  gal)
38 L
(10 gal)
Mechanical filtration Micron filter 2 2 2
Chemical filtration 600g (20 oz.) high grade phosphate-free activated carbon
Cabinet frame Marine spec anodized aluminum profile
Cabinet external Weatherproof Polyurethane painted MDF doors & panels
Cabinet Internal Waterproof sump compartment, dedicated chiller compartment
Length Display tank (MAX® S Including Color Trim) 104 cm
(41″)
128 cm
(50.5″)
160 cm
(63″)
Width Display tank (MAX® S Including Color Trim) 70 cm
(27.5″)
70 cm
(27.5″)
70 cm
(27.5″)
Height Display tank 64 cm
(25”)
64 cm
(25”)
64 cm
(25”)
Total system height (excluding LED light unit) 156 cm
(61″)
156 cm
(61″)
156 cm
(61″)
